Fluke Networks TS54-BANA Pro LCD Telephone Test / Butt Set / TDR, Banana and XL Alligator Clips, Probe

Fluke Networks TS54-BANA Pro LCD Telephone Test / Butt Set / TDR, Banana and XL Alligator Clips, Probe

  • DefaultTitle

$ 74.62

$ 57.40

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

(Item no. 3781553)

NOTE: Fluke Network lead times can vary due to component and supply issues.

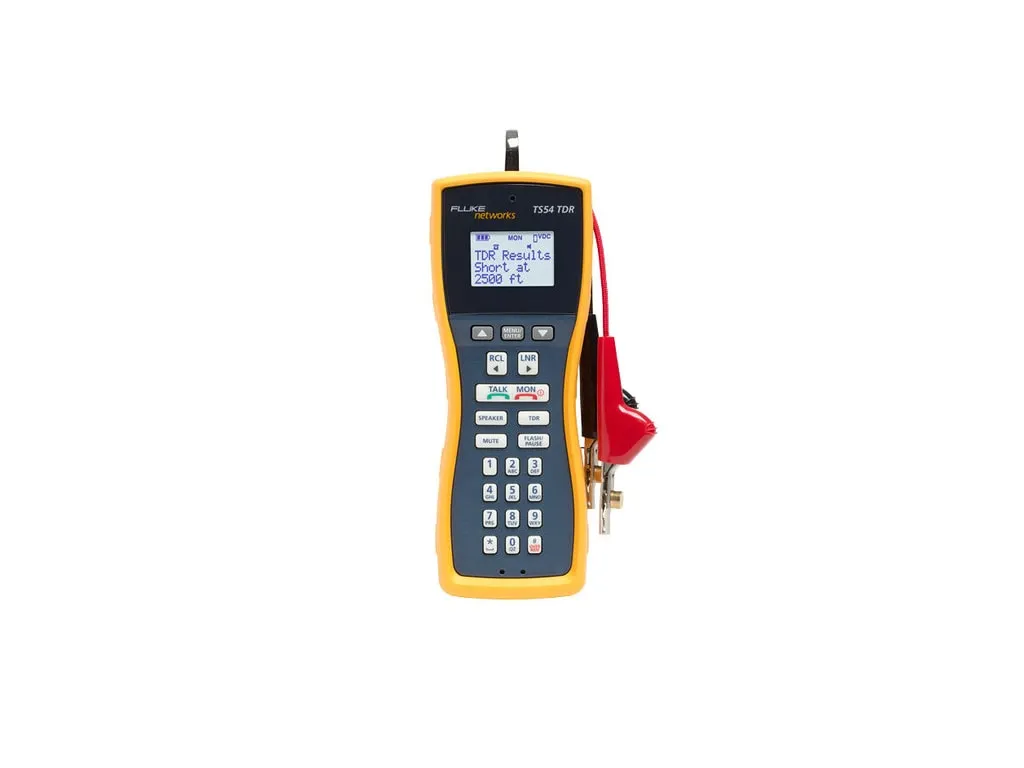

Fluke Networks TS54-BANA Pro LCD Telephone Test / Butt Set / TDR, Banana and XL Alligator Clips, Probe

The TS54 TDR includes all the features of the TS52 PRO, plus:

  • Highly Portable
  • Familiar Cell Phone Menu (Contacts, etc)
  • No-Reverse Battery Design
  • 4MM Banana Plug Kit Available
  • Improved Durability: IP64
  • Quick One-Button TDR Test
  • Opens and Shorts to 3,000 feet (975 meters)
  • Integrated Toner to 10 miles (16,000 meters)
  • SmartTone (5 different tones) for Exact Pair Identification
  • Extra Large LCD w/ Glow-in-Dark Keys
  • Caller ID w/ Call Waiting
  • Headset Compatible

DropSafe™ PRO

Passed 20-foot drop test onto concrete

RainSafe™ PRO

Protection for extreme weather conditions

DataSafe™ PRO

Prevents disruption of data transmission on the line

Toner

Five separate tones for fast and easy differentiation between multiple wire pairs

SmartTone®

Short the correct pair and tone changes for exact pair identification



Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

The innovative TS54 TDR (Time Domain Reflector) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set combined with a powerful TDR and toner. Fluke Networks took the best telephone test set features and design and combined them into one. There’s nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier and butt-in test set–everything you need is in one newly redesigned and compact package.

The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.

Premium Voice, Data, and Video Telephone Test Set

Features

  • TDR – find cable length measurement and locate faults on virtually all types of cable including twisted pair, coaxial, and parallel conductors
  • Toner – five separate tones for fast and easy differentiation between multiple wire pairs
  • SmartTone® – short the correct pair and tone changes for exact pair identification

Additional key testing functions include:

  1. Data indication – warns when data is present on the line
  2. Voltage indication/measurement – identifies potential line problems
  3. Current (mA) indication/measurement – verifies sufficient line current
  4. Caller-ID with Call Waiting — verifies functional service
  5. DTMF Digit Grabbing — isolates faulty customer premise equipment
  6. Detects dial tone, places andreceives calls
  7. Polarity

Additional Features:

  • DropSafe™ PRO – passed 20-foot drop test onto concrete
  • RainSafe™ PRO – protection for extreme weather conditions
  • DataSafe™ PRO – prevents disruption of data transmission on the line
  • High-visibility keypad with glow-in-the-dark keys for any outside plant environment
  • Extra-large, backlit LCD screen
  • Familiar, cell phone-like menu and user interface
  • Two-way, hands-free speakerphone
  • Low bateery and mute indication
  • Optional headset
Telephone Butt-In Test Sets Comparison Chart
  TS®54 TDR TS®52 PRO TS®22A TS®22 TS®25D TS®30 / TS®120* TS®19
TDR for distance to Open, Shorts
Built-in toner
Display—backlit LCD and glow-in-the-the dark keypad     LCD only
Extended range high-impedance DataSafe operation in monitor mode
High-impedance DataSafe™ operation in monitor mode
Data lockout protection
DSL/POTS filtering technology
Low/high voltage indication
Low current (mA) indication
Over voltage and current protection
Waterproof—exceeds American Military Spec. MIL-STD-810E
RainSafe™—safe in severe weather conditions
DropSafe™—passes 20 foot (6 meter) drop test onto concrete
Stores nine 18-digit numbers in repertory dialer (speed dialing)
*TS120 for outside North America only. 67/33 break/make ratio.



 TS52 PRO Series Specification

  TS54 TDR TS53 PRO TS23 PRO
TDR opens/shorts to 3,000 ft/1,000 m
Built-in toner w/5 different tones
Patented SmartTone®for exact pair identification
Caller-ID w/ Call Waiting verification
Extra-large LCD (Liquid Crystal Display)
Extra-large LCD (Liquid Crystal Display)
Backlit LCD with glow-in-the-dark keypad
DTMF Digit Grabbing
Headset compatible
Extended range high-impedance DataSafe™ operation
High-impedance DataSafe operation in monitor mode
Data lockout protection and override
DSL/POTS Filtering technology
Voltage and current digital readout
Voltage and current indicator
Over-voltage protection and over-current protection
One-way amplified speaker for hands-free monitoring
Audible ringer for callbacks
Weatherproof – IP64
Meets Bellcore specifications
Polarity indication/tone and pulse operation
PBX pause button
Visual ANAC (Automatic Number Announcement Circuit) mode option. Not available in all regions
3-year Warranty



TS52 PRO Series Specification
Electrical
Current Range (Off-Hook) 10 mA to 100 mA
DC Resistance
Off-Hook 150 ??nominal
On-Hook >3 M ?
AC Impedance
Off-Hook 600 ??nominal; 300 Hz to 3400 Hz
On-Hook >120 k? 300 Hz to 3400 Hz
Rotary Dial Output
Pulsing Rate 10 pps ±1 pps
Break/Make Ratio 60/40
Interdigit Interval >300 ms
Resistance During Break >100 k?
DTMF Output
Tone Frequency Error ±1.5 % maximum
Tone Level -3 dBm combined (typical)
High versus Low Tone Difference 2 dB ± 2 dB
Memory Dialing
Memory Capacity 10 speed dial memories plus one last number redial memory
Digit Capacity 23 digits per memory
PBX Pause Duration 4 seconds
Hook Flash Duration User programmable; default of 600 ms
Automatic Speaker Shut Off Duration User programmable; default of 2 minutes
Battery 9 V alkaline battery
Physical
Measurement 10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm)
Weight Less than 1.5 pounds (0.68 kg) with one belt clip
Water Resistance Designed to be rain and moisture resistant.
Drop Test Passes 20 foot drop test
Environmental
Temperature Range
Handset speech and dialing functions -22°F to 140 °F (-30°C to 60°C)
LCD function -13°F to 140°F (-25°C to 60°C)
Storage -22°F to 150°F (-30°C to 66°C)
Altitude To 10,000 ft. (3,000 m) max
Relative Humidity 95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C
Safety Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2
EMC Complies with EMC EN61326-1
